(1/2") A Classic V-Belts

Classic A v-belts are exactly that, classic in design and application. The classic 1/2" A v-belt is the most tried and true style of v-belt in the market. This standard v-belt was originally designed to replace leather belts in a variety of industries including agriculture, facility maintenance, heating ventilation and air conditioning (HVAC), and lawn & garden. Also known as a light duty v-belt, they are designed with a 40° angle to "wedge" the belt into the groove of the pulley. The greater the load, the greater the wedging action. The manufacturing process combines a rubber compound with a polyester cord to increase strength and stability. Most A belts are also available in Kevlar.

Conventional v-belt suitable for all standard industrial applications. Standard operating temperatures ranging from -1° F through 158° F.
ISO:9001 Certified

The Workhorse of the Belt World

Ask any maintenance tech which belt they replace most, and odds are the answer is an A section. Classic A V-belts power an enormous share of the machinery running in shops, farms, and facilities across the country, and V-Belt Supply keeps more than 700 sizes in stock, so the one you need is a search away.

What Defines an A Section Belt

A dimensions are the same no matter the brand, which is what makes these belts so easy to source. When you're measuring a V-belt in classic A, .5 inch across the top and 5/16" deep is the profile you're confirming. From there, a few construction details do the heavy lifting:

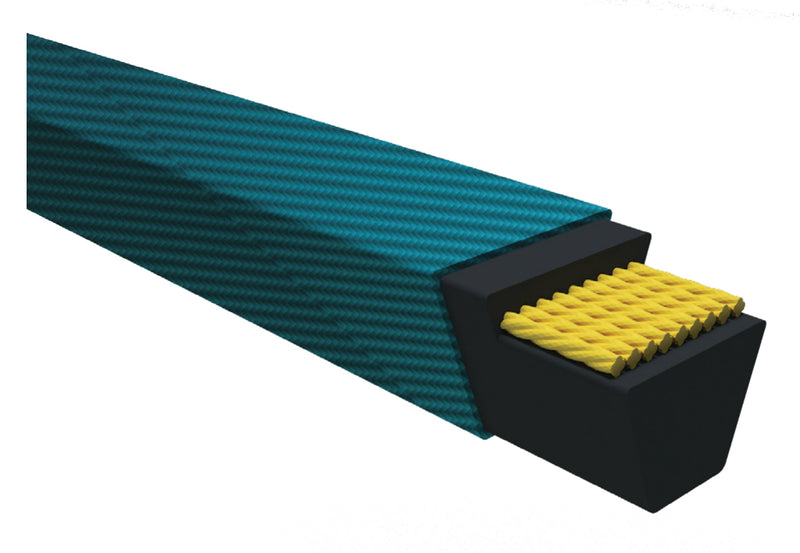

Wrapped fabric cover: Protects the core from dust, oil, and wear while allowing controlled slip on startup
Polyester tension cords: Keep the belt stable under load with minimal stretch
Rubber compound body: Wedges into the pulley groove, gripping harder as the load increases
Aramid (Kevlar) options: Available for clutching drives and shock loads, common in lawn and garden equipment

That wedging grip is why a simple half-inch belt can drive everything from a furnace blower to a grain auger without complaint.

How to Read A Belt Numbers

Every classic A 1/2" belt uses the same straightforward sizing system: the number after the A is the belt's inside length in inches. An A46 measures 46" along the inside, and its outside circumference runs about 2" longer, roughly 48".

Two more tricks that save time at the parts counter:

Cross-referencing 4L sizes. A belts interchange with 4L fractional horsepower belts. Add 2 to the A number and multiply by 10: an A92 crosses to a 4L940 (94" outside).
Measuring a stretched belt. Old belts elongate in service, so measure your pulleys and center distance when possible, or bring us the equipment model instead of trusting a worn belt's length.

Search your size above with no spaces, dashes, or quotes. If you come up empty, call (888) 291-5450 or email salesteam@vbeltsupply.com and we'll cross-reference it for you.

Where Half Inch Classic A Belts Work

This profile earned its "classic" name by showing up nearly everywhere:

HVAC – furnace and air handler blowers, ventilation fans
Agriculture – augers, feeders, sprayers, and utility drives
Lawn and garden – mower decks, tillers, and snow blowers
Shop equipment – air compressors, drill presses, saws, and grinders
Facility maintenance – pumps, fans, and light industrial drives

Standard A belts handle operating temperatures from -1°F to 158°F, which covers the vast majority of these applications year-round.

Buy One Belt or Stock the Shelf

Homeowners and farmers are welcome to order a single classic A 1/2" V-belt, and we ship worldwide. For hardware stores, repair shops, and maintenance departments that go through A belts by the box, a V-Belt Supply commercial account adds volume discounts, a dedicated account manager, and fast reordering on your common sizes.

Find your size here, or reach out to our belt team. Matching classic A V-belts is what we do all day, and we're glad to help you get the right one the first time.
